8000mm Wide PE/PP/PET/PVC/EVA Geomembrane Extrusion Line for 0.5-2.0mm Thickness Waterproof Sheets

1
MOQ
US$200,000.00 - 250,000.00
giá bán
8000mm Wide PE/PP/PET/PVC/EVA Geomembrane Extrusion Line for 0.5-2.0mm Thickness Waterproof Sheets
Đặc trưng Bộ sưu tập Mô tả sản phẩm Yêu cầu báo giá
Đặc trưng
Thông số kỹ thuật
Vít: Vít đơn
Máy tính hóa: Máy tính hóa
tùy chỉnh: tùy chỉnh
Đặc điểm kỹ thuật: SJ120/33, SJ200/33
Tự động hóa: Tự động
Loại sản phẩm: Máy ép đùn
Gói vận chuyển: Gói tiêu chuẩn
Cấu trúc kênh vít: Vít sâu
Độ dày phim: 0,5-2,0mm
Khí thải: Đừng kiệt sức
Làm nổi bật:

8000mm Wide Geomembrane Extrusion Line

,

PE/PP/PET/PVC/EVA Waterproof Sheet Extrusion Line

,

0.5-2.0mm Thickness Polymer Film Extrusion Line

Thông tin cơ bản
Nguồn gốc: Qingdao, Trung Quốc
Hàng hiệu: huashida
Chứng nhận: CE, ISO9001:2008, QS, ISO
Thanh toán
Thời gian giao hàng: 60 ngày
Điều khoản thanh toán: D/p, d/a, t/t
Khả năng cung cấp: 30 bộ/năm
Mô tả sản phẩm
Product Description
Geo-Membrane Film Extrusion Line
The Geo-Membrane Film Extrusion Line is an advanced production line specifically designed for manufacturing high-quality waterproof membranes. Utilizing a range of high polymer materials such as PE, PP, PET, PVC, and EVA, this extrusion line can produce films with a maximum width of 5000 mm and thicknesses ranging from 0.1 mm to 30 mm.
Features


8000mm Wide PE/PP/PET/PVC/EVA Geomembrane Extrusion Line for 0.5-2.0mm Thickness Waterproof Sheets 0

Product Specifications

This extrusion line is ideal for various engineering projects, √ including:
√ Landfill sites
√ Wastewater treatment plants
√ Subway projects
√ Tunnels
√ Flood control systems
√ Artificial lakes
√ Industrial waterproofing

Our Advantages

Comprehensive Specifications: Full range of widths and thicknesses available.
High Flexibility and Strength: Exceptional durability and resilience.
Excellent Environmental Stress Crack Resistance: Adaptable to various environmental conditions.
Wide Temperature Range: Suitable for diverse applications.
Easy Installation: Simplified construction processes.
Versatile Use: Perfect for underground projects and complex terrains.

8000mm Wide PE/PP/PET/PVC/EVA Geomembrane Extrusion Line for 0.5-2.0mm Thickness Waterproof Sheets 1

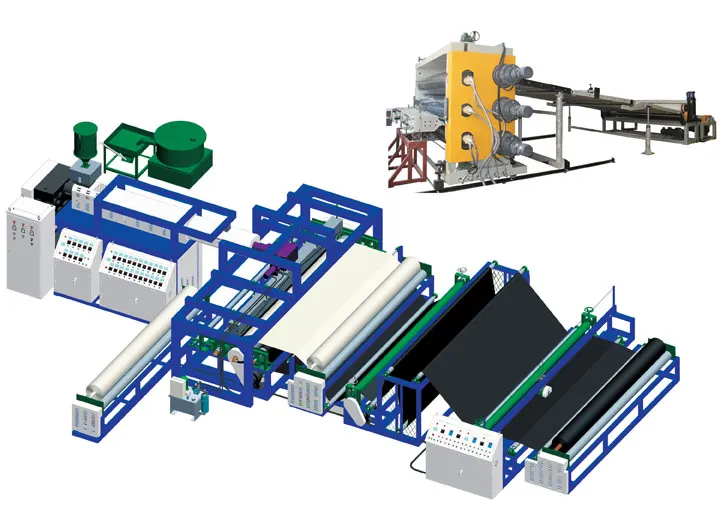

Technological processes
Extruder
Film Width
Film Thickness
Capacity
Total Power
Dimension(m)
SJ120/33
3000mm
0.5-2.0mm
500Kg/h
250Kw
20×4×2.5
SJ200/33
8000mm
0.8-3.0mm
1200Kg/h
550Kw
22×10×2.5


Company Profile
Qingdao Huashida Machinery Co., LTD, is a manufacturer of series of plastic pipe machines, municipal pipe machinespipe insulation&anticorrosion machinesand pipe jointing&anticorrosion materialswith 21 years of production experience.
Our main products are:
1. HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
2. Rigid pre-insulated pipe Production Line
3. Flexible pre-insulated pipe(PERT) production line
4. Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
5. Steel pipe derusting line
6. PE pressure pipe/Water Gas supply pipe production line
6. PP/PE plastic board/sheet/geomembrane production line
7. NBR PVC Thermal insulation tube/plate production line
8.Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun(extruder), PE PP welding rod.



We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria and other countries.

8000mm Wide PE/PP/PET/PVC/EVA Geomembrane Extrusion Line for 0.5-2.0mm Thickness Waterproof Sheets 2
Our team
8000mm Wide PE/PP/PET/PVC/EVA Geomembrane Extrusion Line for 0.5-2.0mm Thickness Waterproof Sheets 3

Delivery
8000mm Wide PE/PP/PET/PVC/EVA Geomembrane Extrusion Line for 0.5-2.0mm Thickness Waterproof Sheets 4

Exhibition
8000mm Wide PE/PP/PET/PVC/EVA Geomembrane Extrusion Line for 0.5-2.0mm Thickness Waterproof Sheets 5
Certifications
8000mm Wide PE/PP/PET/PVC/EVA Geomembrane Extrusion Line for 0.5-2.0mm Thickness Waterproof Sheets 68000mm Wide PE/PP/PET/PVC/EVA Geomembrane Extrusion Line for 0.5-2.0mm Thickness Waterproof Sheets 7
